Tweco Electrode Holder - TwecoTong
- Regular
- $44.00
- Sale
- $44.00
- Regular
- $53.00
Sold Out
- Unit Price
- per

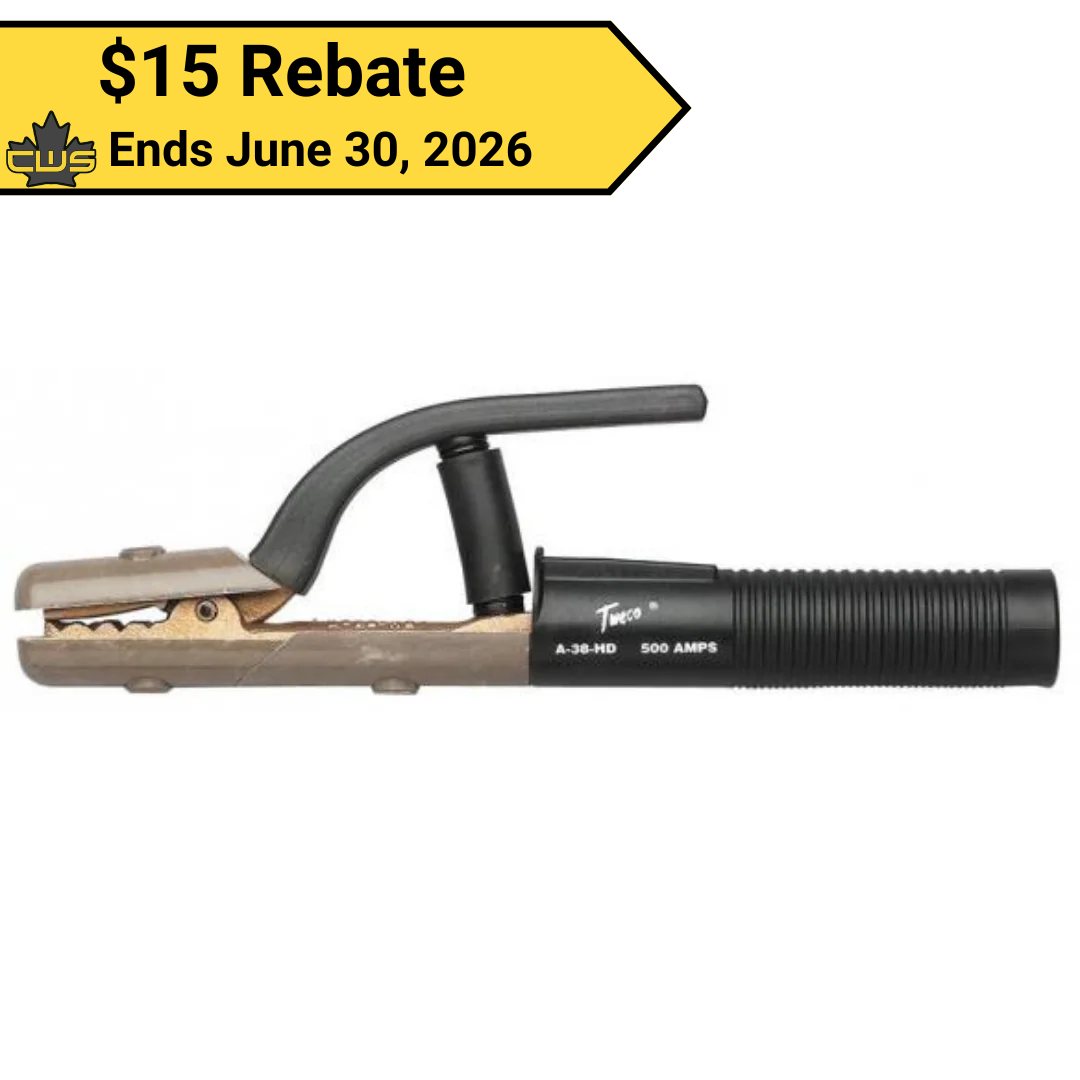

TwecoTong Electrode Holder
TwecoTong electrode holders are designed to firmly hold a welding electrode in position. They are manufactured from heavy duty copper alloy and feature reversible top and bottom insulators, efficient 6-position jaw pattern, ball-point cable connections and fully insulated and protected springs.
- Ergonomic Handle fits comfortably in the palm and helps to decrease operator fatigue
- One-Piece handle covers up to the jaw thereby eliminating need for the body insulator resulting in fewer parts to inventory
- Reversible top
- Holds min 1/16 in. electrode. Refer to chart below for max electrode clamping capability.
options:
| Amps | Model # | Max Cable Diameter |
Max Electrode Size
|
| 200 | A532 - 9110-1101 | 2/0 - 67.4 |
5/32 in. 4.0 mm
|
| 250 | A316 - 9110-1102 | 2/0 - 67.4 |
3/16 in. 4.8 mm
|
| 300 | A732 - 9110-1103 | 2/0 - 67.4 |
7/32 in. 5.6 mm
|
| 350 | A-14 - 9110-1104 | 4/0 - 107 | 1/4 in. 6.4 mm |
| 400 | A-14-HD - 9110-1105 | 4/0 - 107 | 1/4 in. 6.4 mm |
| 500 | A-38-HD - 9110-1106 | 4/0 - 107 | 3/8 in. 9.5 mm |
